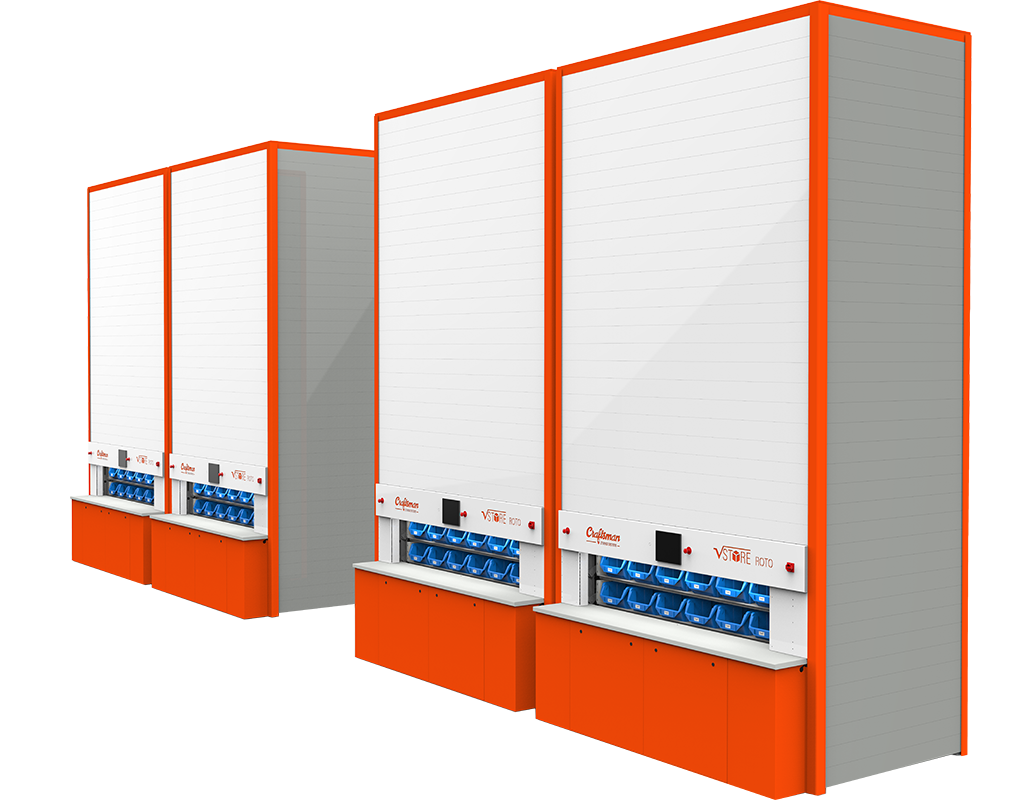

VSTORE ROTO is a system of rotating shelves that move up or down along a tracking guide in response to operator commands. Items are delivered quickly and directly to the operator, for enhanced throughput and productivity. Our vertical storage and retrieval Systems with a small footprint, high density, V Store Roto makes maximum use of floor space and Offers cost-effective, efficient, quick and ergonomic solutions to meet your storage and retrieval needs.
Shelves can be equipped with inserts, roll out drawers and specialty holders, and can be configure to hold items, totes, containers, cases and cartons.
Stored items can include:
With small footprint, VSTORE ROTO can recover as much as 75% of the floor space
Space Saving
Retail
Electronics
Automotive
Health Care
Manufacturing
Logistics
Warehousing
Cosmetics
| S.No | System | Model | ||
|---|---|---|---|---|
| VCL - Lite | VCM - Medium | VCH - Heavy | ||
| 1 | Machine Height | 2500 - 7000 mm | 2500 - 10000 mm | 2500 - 10000 mm |
| 2 | Machine Width | 2300 - 3800 mm | 2300 - 3800 mm | 2300 - 4300 mm |
| 3 | Machine Depth | 1400/1600/1800 mm | 1400/1600/1800 mm | 1500/1700/1900 mm |
| 4 | Carrier Height | 229/254/279/305/330/356 mm | 229/267/305/343/381/419/457 mm | 254/305/356/406/457 mm |
| 5 | Carrier Width | 1500 - 3000 mm | 1500 - 3000 mm | 1500 - 3500 mm |
| 6 | Carrier Depth | 430/530/630 mm | 430/530/630 mm | 430/530/630 mm |
| 7 | Usable Net Load (Max)(Incl. Carrier Weight) | 6000 kg | 12000 kg | 19000 kg |
| 8 | Max Imbalance Load | 600 kg | 1200 kg | 2100 kg |
| 9 | Max Load Per Carrier | 180 kg | 350 kg | 600 kg |
Higher throughput with reduced error rates, search and travel time.
Modular expandability. Small footprint recovers floor space for more profitable use, maximizes use of available overhead space.
Reduced shrinkage through Limited access to items, Security carriers, Access codes and Software password protection available.
Dramatically increased storage and retrieval efficiency saves labor, gives you more picks per hour
Pick counters are Designed with an Ergonomically optimized work height. This helps eliminate the need for Workers bending, reaching, Squatting or climbing.
PLC with HMI control combines with productivity savings for quick system payback. It has been designed to easily interface with all type of ERP systems.
Cutting Tool Manufacturer
Previously it is stored inside a mobile compactor, There was no proper tracking of die sets, difficult to trace & chances of misplacing.
View More
Manufacturer
Earlier customer was using 102.19 sq m of area for storing the bins and cartons which includes smaller line items as well as regular inventory.
View More
Industry
In process of the makeover of their existing traditional stores to advanced space optimization solution, Cyient Dlm was marching ahead.
View More
Industry
The world's leading manufacturer of agricultural, construction and forestry equipment company Headquartered at Pune
View More
Industry
A fully owned subsidiary of Japan Rubber Company, which is a leading name in the global Off-Highway Tires business. The Company develops, manufactures...
View More
